DIY electric centrifugal spray system sprayer gimbal Foldable pure carbon fiber/Aluminum for Agricultural multi-rotor drone

$517.57

Buy product

Compare
SKU: 32599216044 Categories: , , ,

Description

DIY electric centrifugal spray system sprayer gimbal Foldable

pure carbon fiber/Aluminum

for Agricultural multi-rotor drone

please note:

Based on feedback from farmers after use, and now this spray head, we do new and improved.Easier to use, more when not in use to save space
The first bucket is now 10L pot type, not square.
Second, the folding spray pipe, sprinkler pipe improved in order to quickly disassemble
Third, the nozzle into the black

Product description:
The sprinkler system capacity maximum 10kg

Supporting 2 nozzles, spray rod length 1600mm, single centrifugal spray from 1M height of 1-2 meters from the crop spraying web width up to 3-5 meters

With a control system (occupying a channel of receiver) supports remote spraying 12V power supply

The prudcut advantages: saving drugs, atomizing effect, the fine particles to the slowest speed operation, with an average 0.6 acres of land can be sprayed per minute, the fastest in 1 acre land per minute

Parameter:

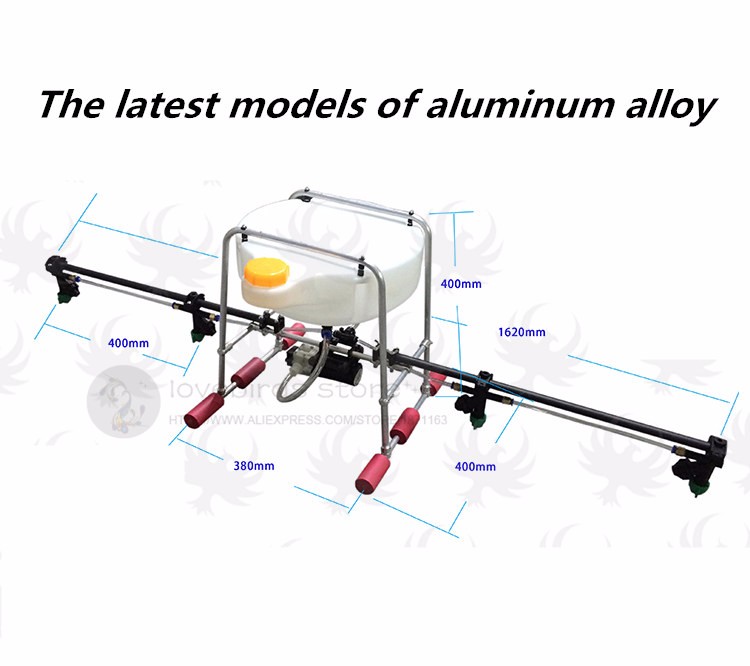

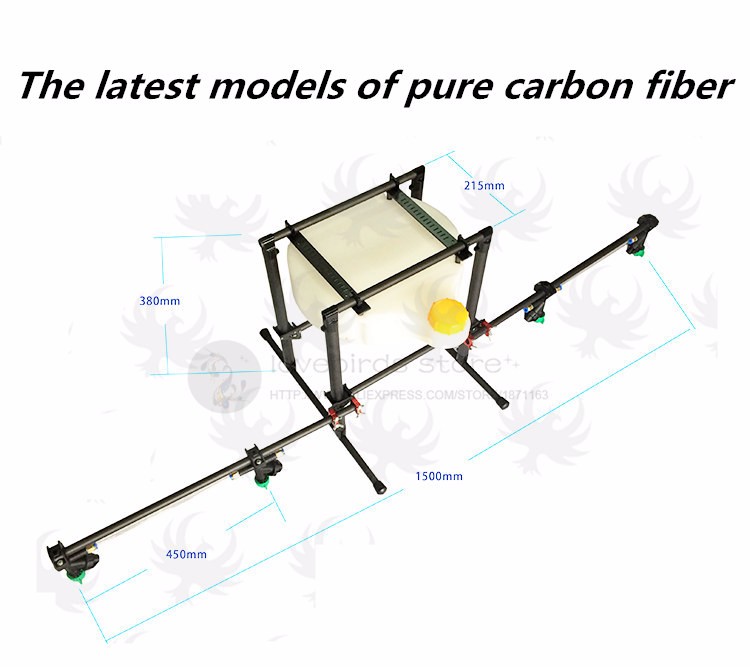

  • Empty gimbal Weight: Carbon 1.3KG, 1.5KG aluminum
  • Including centrifugal spray system weight: Carbon 2.2KG, aluminum 2.65kg
  • Control system voltage: 3S (12V)
  • Height: carbon:380mm, aluminum :400mm
  • Foot width: carbon 215mm, aluminum :400mm
  • Undercarriage rail length: 380mm
  • Containing boom width: carbon 1500mm, aluminum :1620mm
  • Spray speed: 1-1.2L / min
  • Spray Width: 2-4 meters
the gimbal parts list:
  1. Medicine chest Capacity: 10KG / piece
  2. Atomizing nozzle: 2 pcs
  3. Lightweight high pressure pumps: 1 piece
  4. Electronic remote control switch: 1 set
  5. landing gear and frame body connection: 1 set

Package list:

the electric centrifugal spray gimbal * 1 set (just a kits,unassembled)

NOTE:

1. We reserve the right to part of the height of the landing gear to make reasonable adjustments, the picture is not otherwise replace
