32 channels HD1080P DV camera all-in-one 5.8G 400mw TX FPV wireless video transmission for DIY racing quadcopter drones QAV250

$129.00

Buy product

Compare

Description





32 channels HD1080P DV camera all-in-one

5.8G 400mw TX FPV wireless video transmission

1

Product Description

5.8G 32 channel HD 1080P FPV 400MW wireless transmitter DV camera all-in-one

Support OSD / camera / video 1080P HD pixel adjustable up and down 45 degrees and 135 degrees wide-angle camera DV FPV wireless transmitter all-in-one

Features:

1. Full HD 1080P 30fps
2. Built-in 4-band 32CH5.8GHz of 400MW transmitter TX

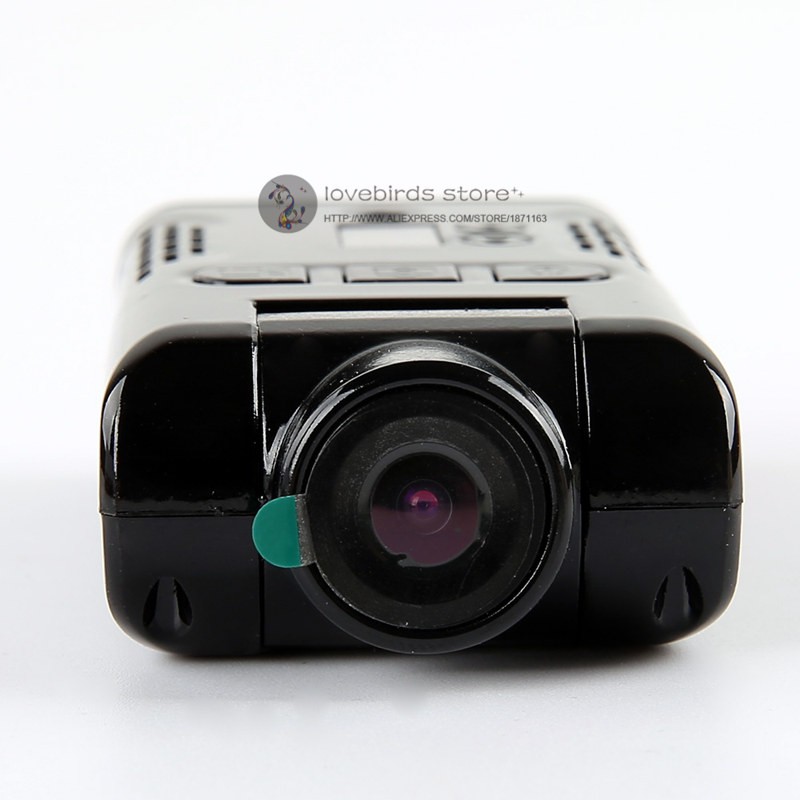

3.LENS swivel range: ± 45 degrees
4.FOV angel: 150 degrees (diagonal)
5.Support PWM Remote Control
6. Support OSD

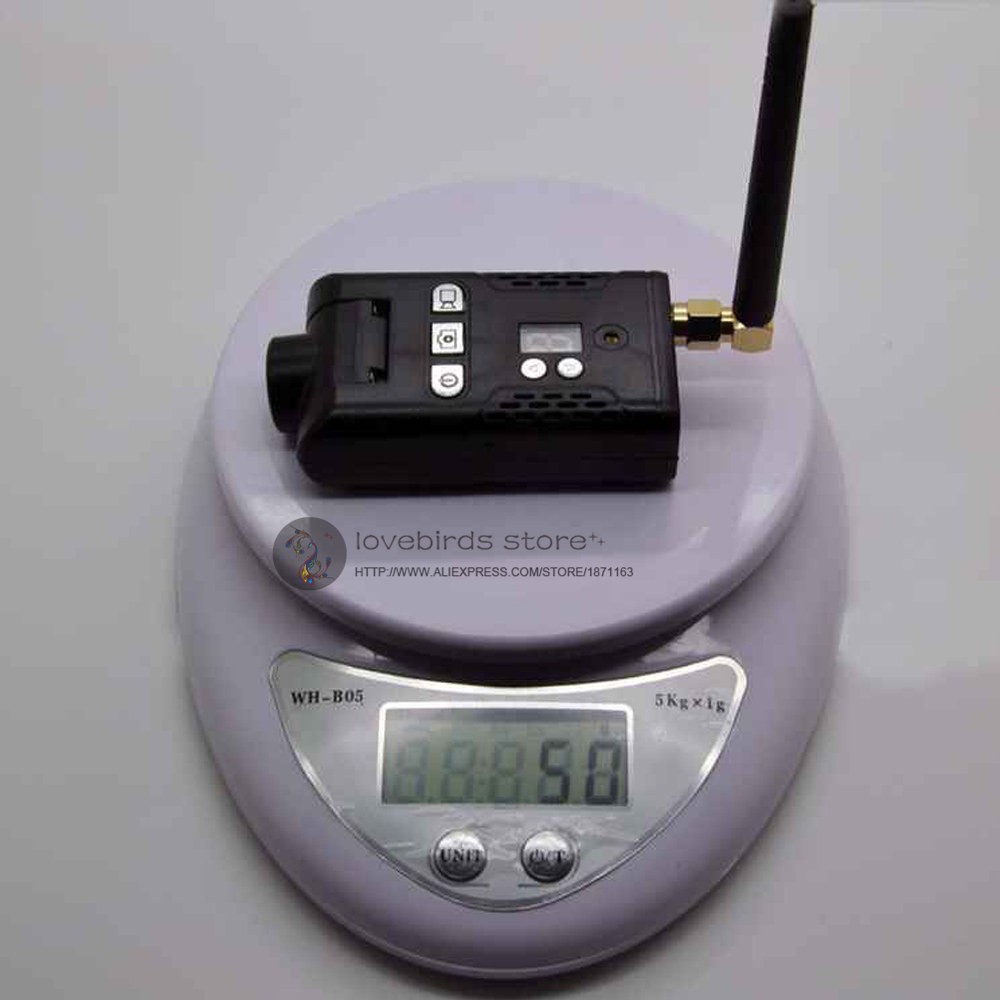

7.weight:50g
2354
Package list:
the all-in-one 5.8G 400MW HD1080P DV 8 1set
Precautions:
Please ensure DV battery is fully charged before use
Please Micro 5Pin USB cable is connected to the DV, and the other end connected to a 5V power supply (power adapter, PC or power bank
It'll take about 90 minutes to recharge. Charge LED is red, while charging and green after fully charged.
Please ensure that the power is not greater than 5V / 1.2A smaller, and the charging and recording at the same time.
ThePWM remote control feature enables remote control 3 switch.
ThePWM remote control functions to achieve with a suitable liquid crystal display products.
Power button / LED
Long press the power button for three seconds to turn the PWM remote and the blue LED flashes. Press again to turn on the camera to review mode and the camera. (Blue and red constant light after open LED off)
Short press once to enter the system menu under View mode
In the menu mode ESC key
Long press 3 seconds to turn off the device.

Photo key
Short press review next capture mode to take pictures
Short press once to capture the recording mode to take pictures

Record button
Short press once to start recording the review mode, press Stop Recording
Long press 3 second time in view mode to enter playback mode
It's in the menu mode OK

UP key
Short press once to set the band
It's in the menu mode UP key

Down key
Short time set by channel
Down button in the menu mode It's

Recording mode
RedLED flashes when recording, REC icon is red
Video files are automatically saved (REACH set the video length), and create a new file to continue recording. (Recording time will be displayed on the screen until it stops recording)
It is OK to take pictures while recording

Remote / channel settings
One Connect3P remote control cable connected to the receiver and the other end of the S1 port on the camera PWM channel
To assign channels to the band / channel settings and assign additional three switches, CH bands, CL for the channel

Remote camera control (with LCD display products for implementation)
Connect3P remote cable to a receiver PWM channels and the other end connected to the camera port S2
To specify the channel camera remote control port S2
ConnectLCD remote monitor output port connected to the remote control PWM input. Then, you can operate the camera by the LCD screen

External OSD device
Press both UP / DOWN keys while in view mode the camera switches to transmit mode OSD. And then the video output to an external OSD and then back to the camera
Press the button again to return to normal two video transmitter mode
Remote / channel settings
One Connect3P remote control cable connected to the receiver and the other end of the S1 port on the camera PWM channel
To assign channels to the band / channel settings and assign additional three switches, CH bands, CL for the channel

Remote camera control (with LCD display products for implementation)
Connect3P remote cable to a receiver PWM channels and the other end connected to the camera port S2
To specify the channel camera remote control port S2
ConnectLCD remote monitor output port connected to the remote control PWM input. Then, you can operate the camera by the LCD screen

External OSD device
Press both UP / DOWN keys while in view mode the camera switches to transmit mode OSD. And then the video output to an external OSD and then back to the camera
Press the button again to return to normal two video transmitter mode
